Edit IDOC

For interfaces that involve replication via IDOC, an extension, custom segments, and fields can be added in the Mapping Details table.

Add Extension

1. If an extension is not added to the standard IDOC type, then it can be added by selecting Edit IDOC .

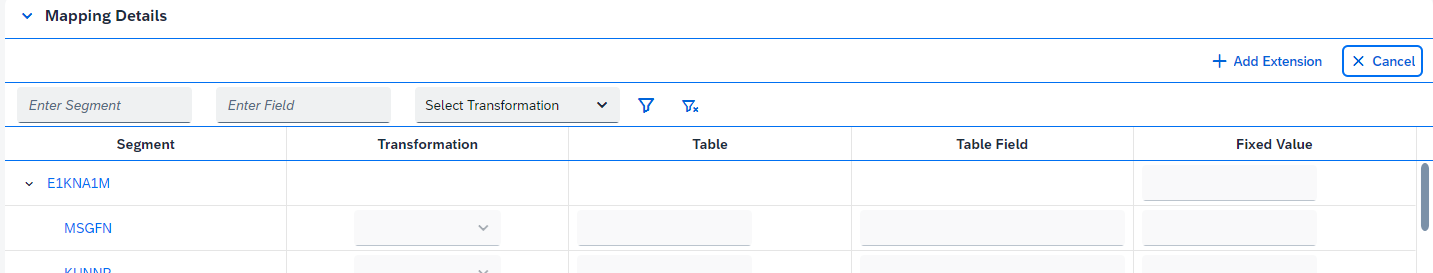

2. Highlight the segment. Click on Edit IDOC and then Add Extension.

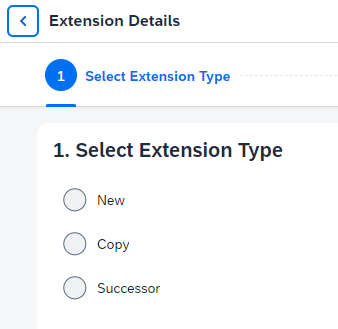

3. Create a new extension, copy from an existing one or add a successor.

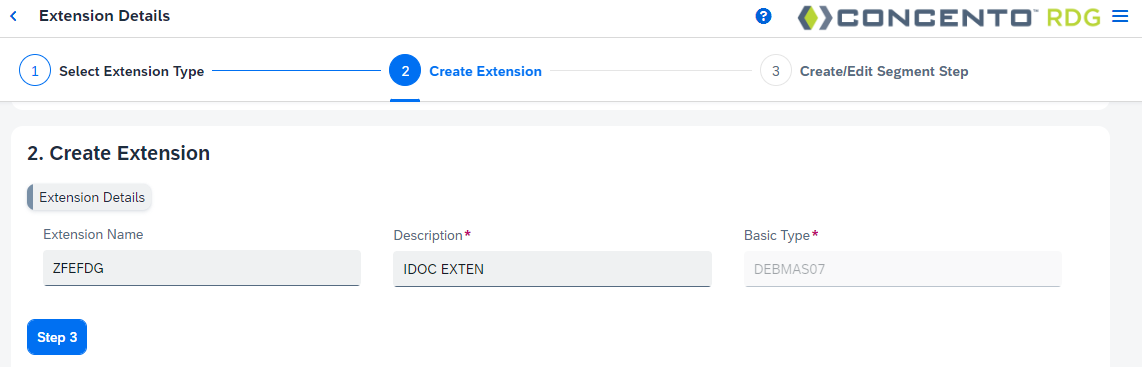

4. Add the extension name starting with “Z.” In case of copy and successor, choose the referencing segment from the list.
5. Give the description. The basic type (Basic IDOC Type) is defaulted already.

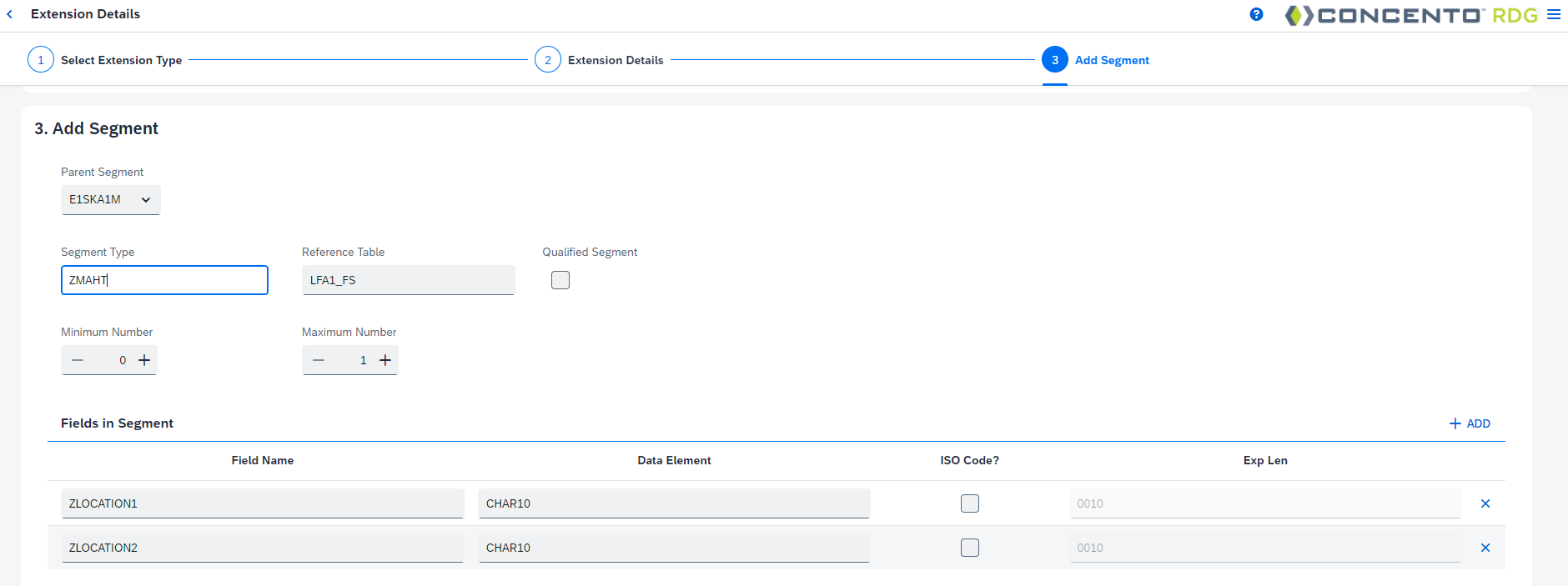

6. Click on step 3.
   • Choose the parent Segment from the list
   • Give the name of the segment starting with “Z”
   • Choose a relevant referencing table
   • Minimum and maximum can be set per requirements
   • Add the fields to the segment


7. Click Save and select the correct TR and package.



Add Segments

If the IDOC type already has an existing extension, then user will only see options to add/edit segments
Custom segments must be added to a parent segment. Multiple custom segments can be added. Only custom segments can be edited.

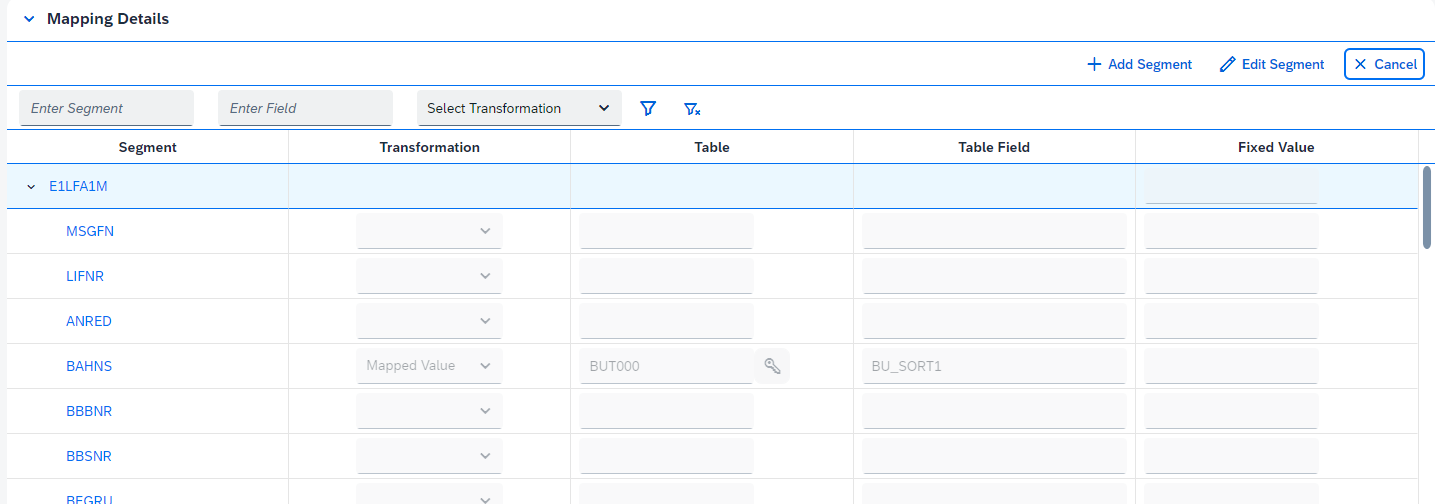

1. Highlight the parent segment. Click Edit IDOC and then Add Segment.

2. Fill in required information.
   • Give the name of the segment starting with “Z”
   • Choose a relevant referencing table
   • Minimum and maximum can be set per requirements
   • Add the fields to the segment
   • Click Save and select the correct TR and package.



Edit a Segment

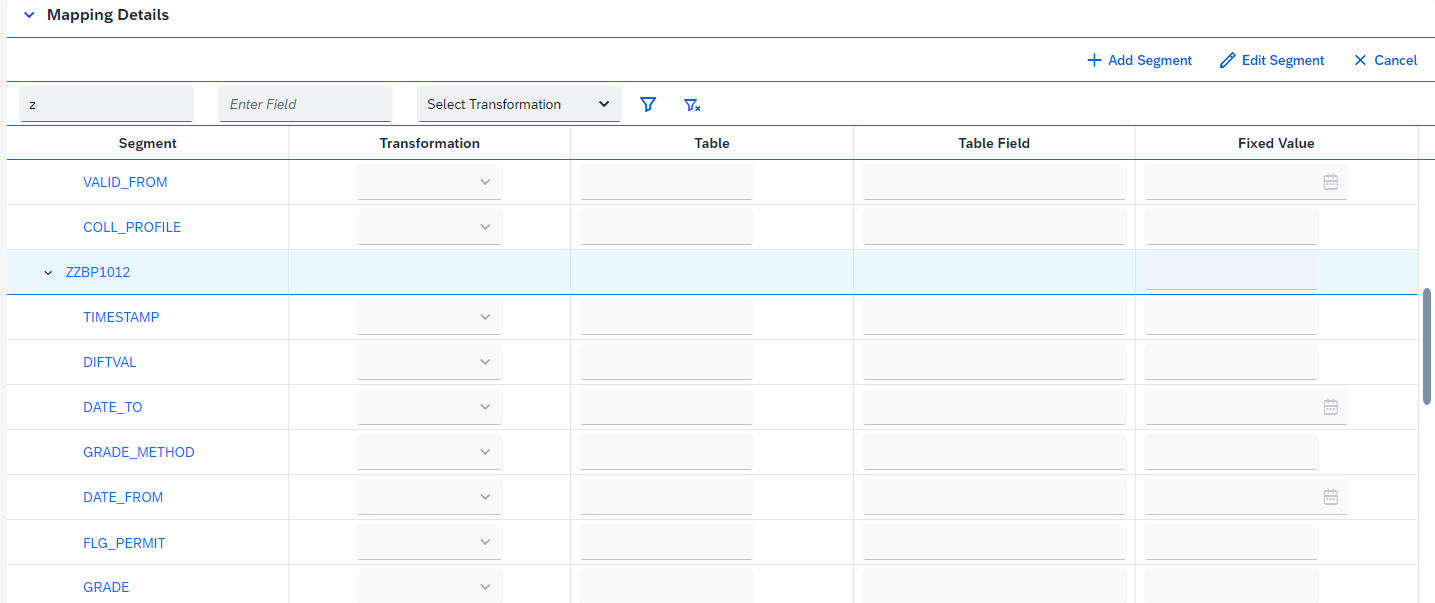

1. Highlight a custom segment in the table. Click Edit Segment.

2. Make required changes. Editable fields include
   • Reference Table
   • Minimum Number
   • Maximum Number
   • Qualified Segment indicator
   • Existing Fields in Segment
   • Adding additional fields
   • Removing fields
