For data replication involving SOA, enhancements with elements and attributes may be added in the Mapping Details table. An enhancement may have attribute(s) directly under it, or may have element(s) that contain attribute(s).
Add Element and Attribute

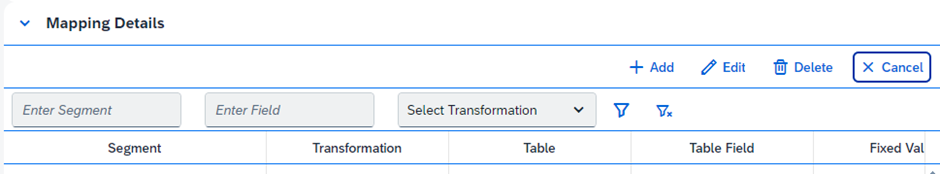

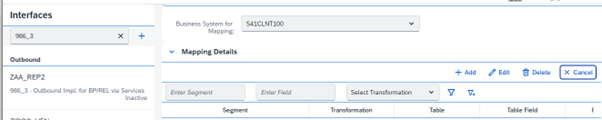

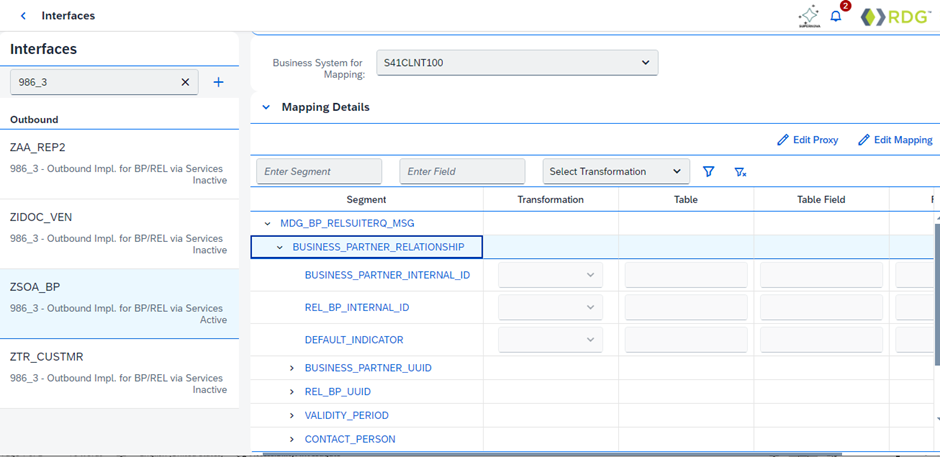

- Highlight the segment. Click on Edit Proxy .
- Click on Add

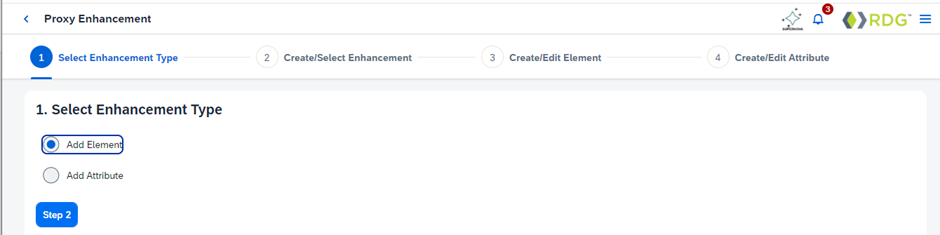

- Choose Add Element. Or choose Add Attribute to add the attribute directly under the enhancement and skip to step 8 of these instructions.

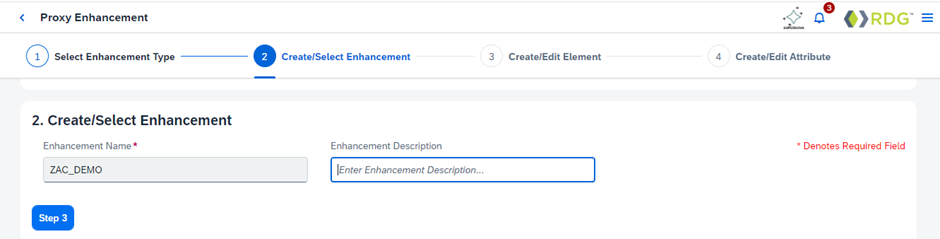

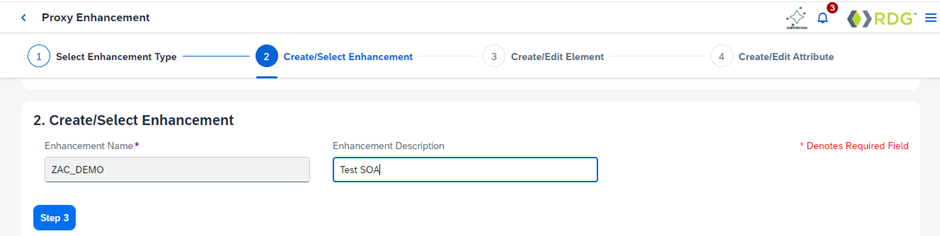

- Enter Enhancement Name starting with Z or Y.
- Give the description (Optional).
- Click on step 3.

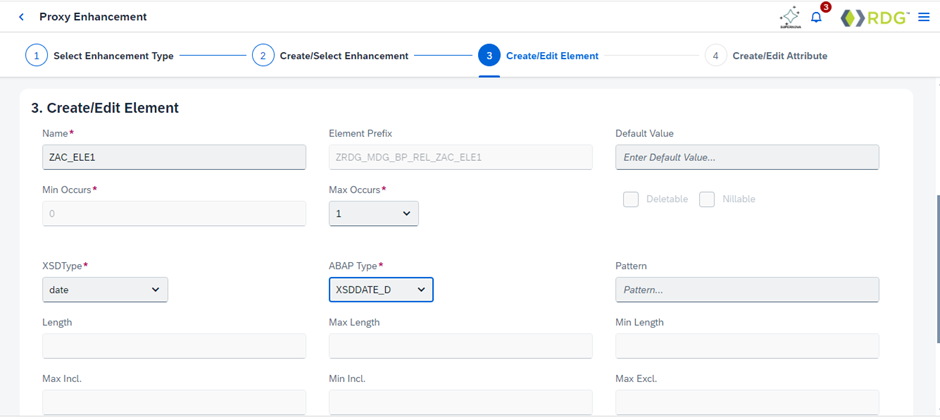

Enter the Element Name starting with Z or Y
Select the value from the list for Max Occurs field
Select the XSD Type from the list
Select the ABAP Type from the list
Based on the selections for XSD Type and ABAP Type, other fields may be optional or required. These fields will be made editable or marked required according to the values selected. - Click on Step 4

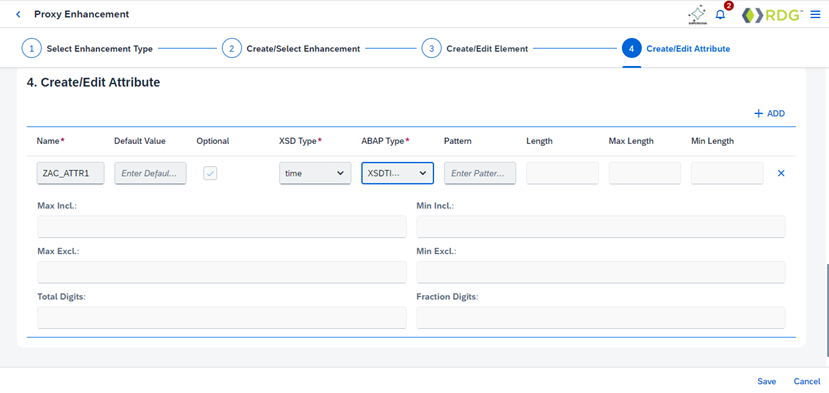

- Click on Add to create a new Attribute
Enter the Attribute name starting with Z or Y
Enter Default Value (optional)
Select the XSD Type
Select the ABAP Type
Based on the selections for XSD Type and ABAP Type, other fields may be optional or required. These fields will be made editable or marked required according to the values selected. - Click Save and select the correct TR and package.

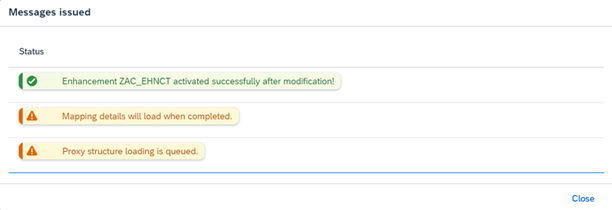

- Receive a confirmation message that the changes have been submitted and that the details will load when completed. This may take one to two minutes.

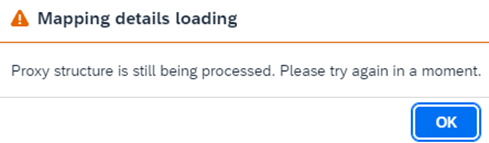

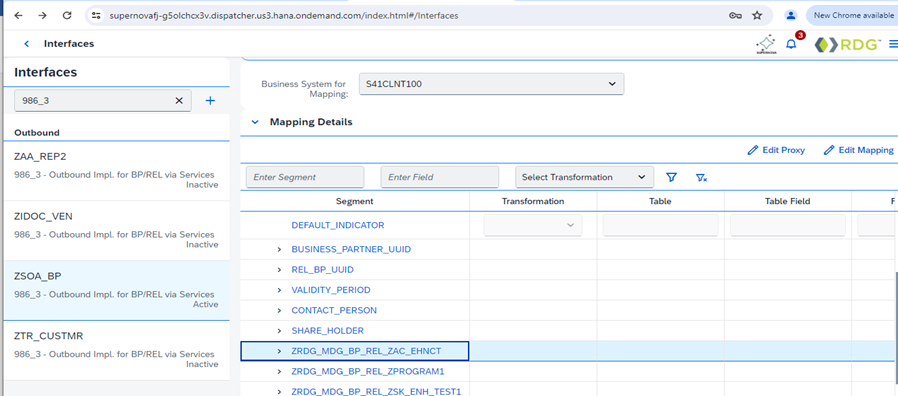

- If you return to the Mapping Details before loading is complete, receive a message that details are still loading. Return to the Mapping Details when complete.
Edit Proxy Enhancement

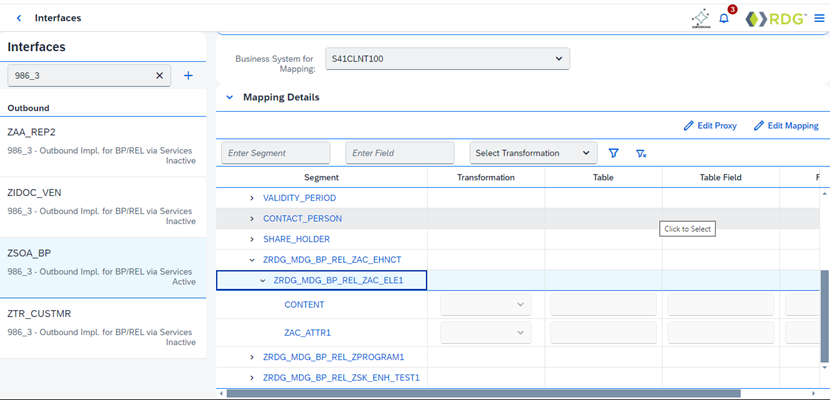

- Highlight the custom enhancement, element, or attribute to be edited. Click on Edit Proxy.
- Click on Edit
- Make required changes.
Editing Enhancement → Add or Edit Attribute(s)
Editing Element → Add or Edit Attribute(s)
Edit Attribute
Click Save and select the correct TR and package. - Receive a confirmation message that the changes have been submitted and that the details will load when completed. This may take one to two minutes.
- If you return to the Mapping Details before loading is complete, receive a message that details are still loading. Return to the Mapping Details when complete.

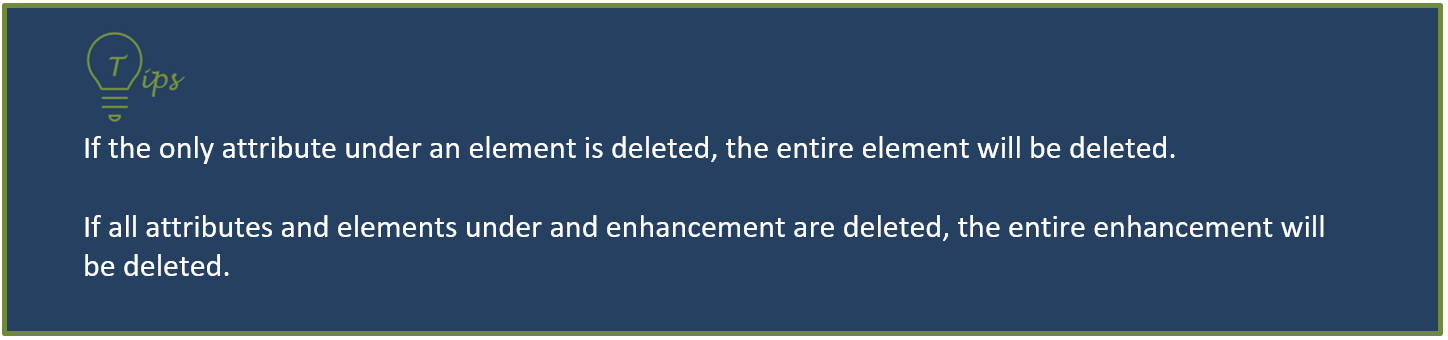

Delete Enhancement, Element, or Attribute
- Select the enhancement, element, or attribute to be deleted and click on Edit Proxy
- Click on Delete
- Select the correct TR and package.
