Multi-value Derivation Rule
Allows the addition of multiple derivation rules based on the conditions of the driving attribute values.

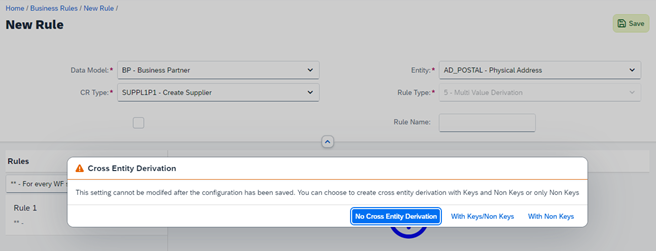

- Choose the Data Model, CR Type, and Entity at the top of the screen. After selecting the entity, a message box for cross-entity option will appear. Choose whether cross entity derivation applies to the rule that will be created and determine whether or not dependent key entries are needed.

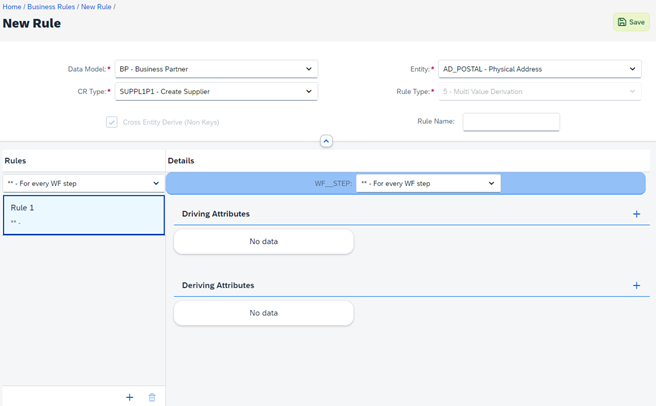

- Select Rule 1 from the left side of the screen.

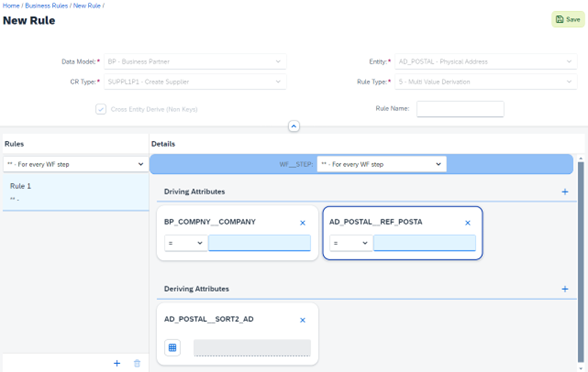

- Add the Driving and Deriving Attribute by clicking the + button on the right side of the screen.

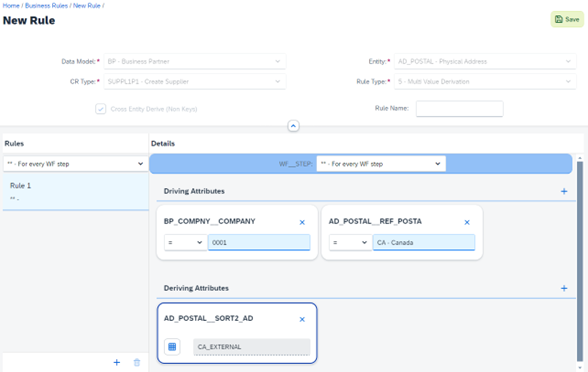

- Enter values for driving and deriving attributes. Change the comparison operators for the driving attributes if needed.

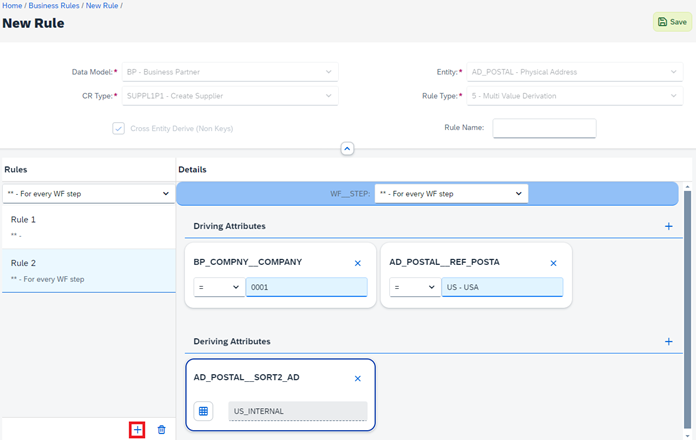

- Use the + button on the left side of the screen to add additional rules. Attribute values and message information must be entered for each rule added. If an additional attribute is added to one of the rules, the same attribute will be automatically included in the other rules.
- Save Configuration, select TR and Package. Successful message should appear.
