Value Check Rule

RDG provides the flexibility to apply the business rules with the appropriate messages if conditions do not meet the business rule.

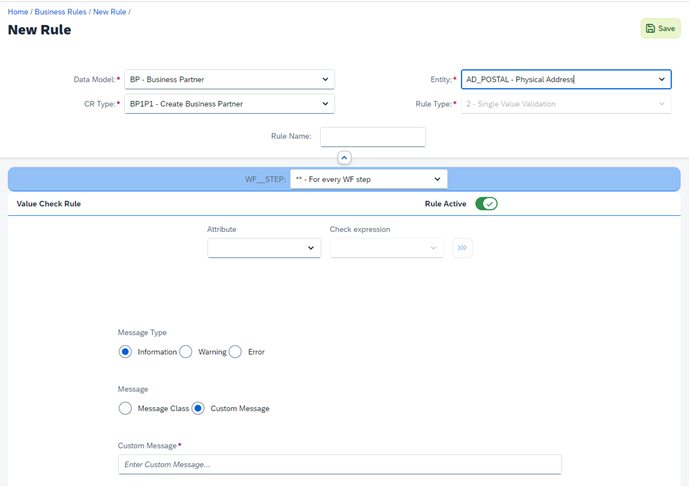

  1. Select the dropdown next to the entity and select the value check rule.



  2. Select the attribute for the value check and the expression
  3. Select Generate Flow. mceclip3.png

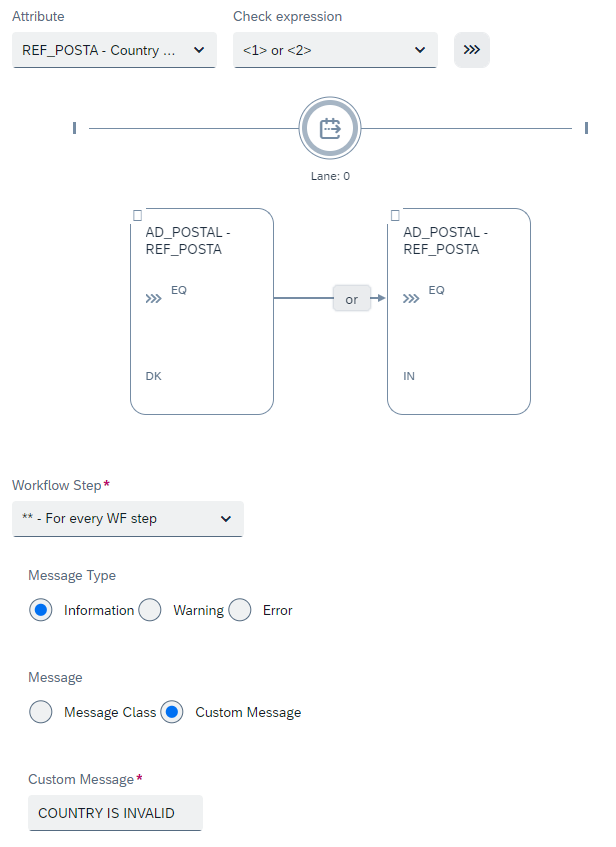

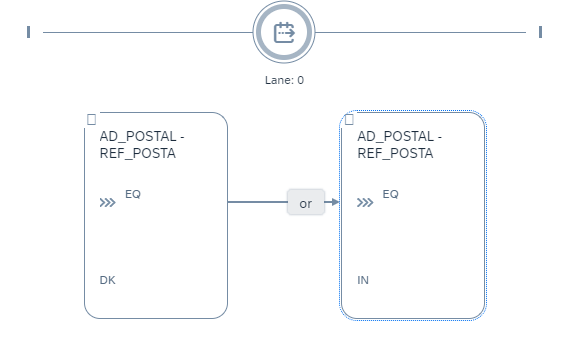

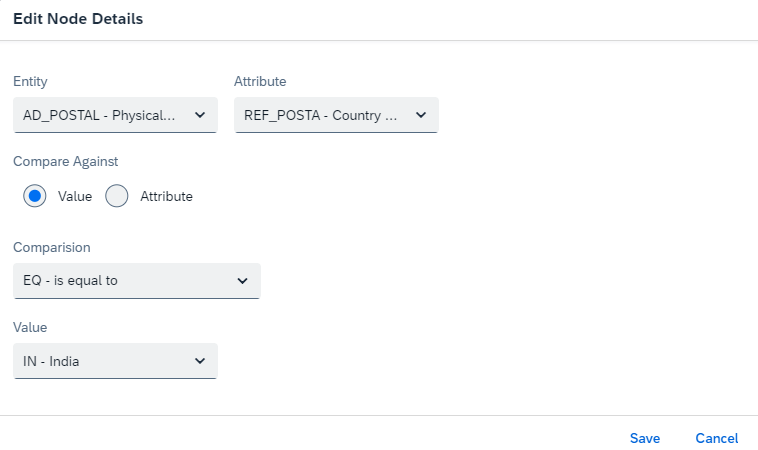

  4. Complete the conditions using values or attributes:


    • If AD_POSTAL-REF_POSTA = “CN”
    • Or AD_POSTAL = “IN”
    • Then display error message “COUNTRY IS INVALID” for All workflow steps

  5. Select the workflow step determining when the rule will be enforced.
  6. Select the message type details (A preconfigured message class and text or custom message can be used).
  7. Save and select the TR.
  8. The rule is created in the BRF application and a successful message should appear:

When creating single value rules where the attributes used in the conditions involve units, such as


the only valid comparisons are
LT – is less than
LE – is less than or equal to

NE – is not equal to
